Overview

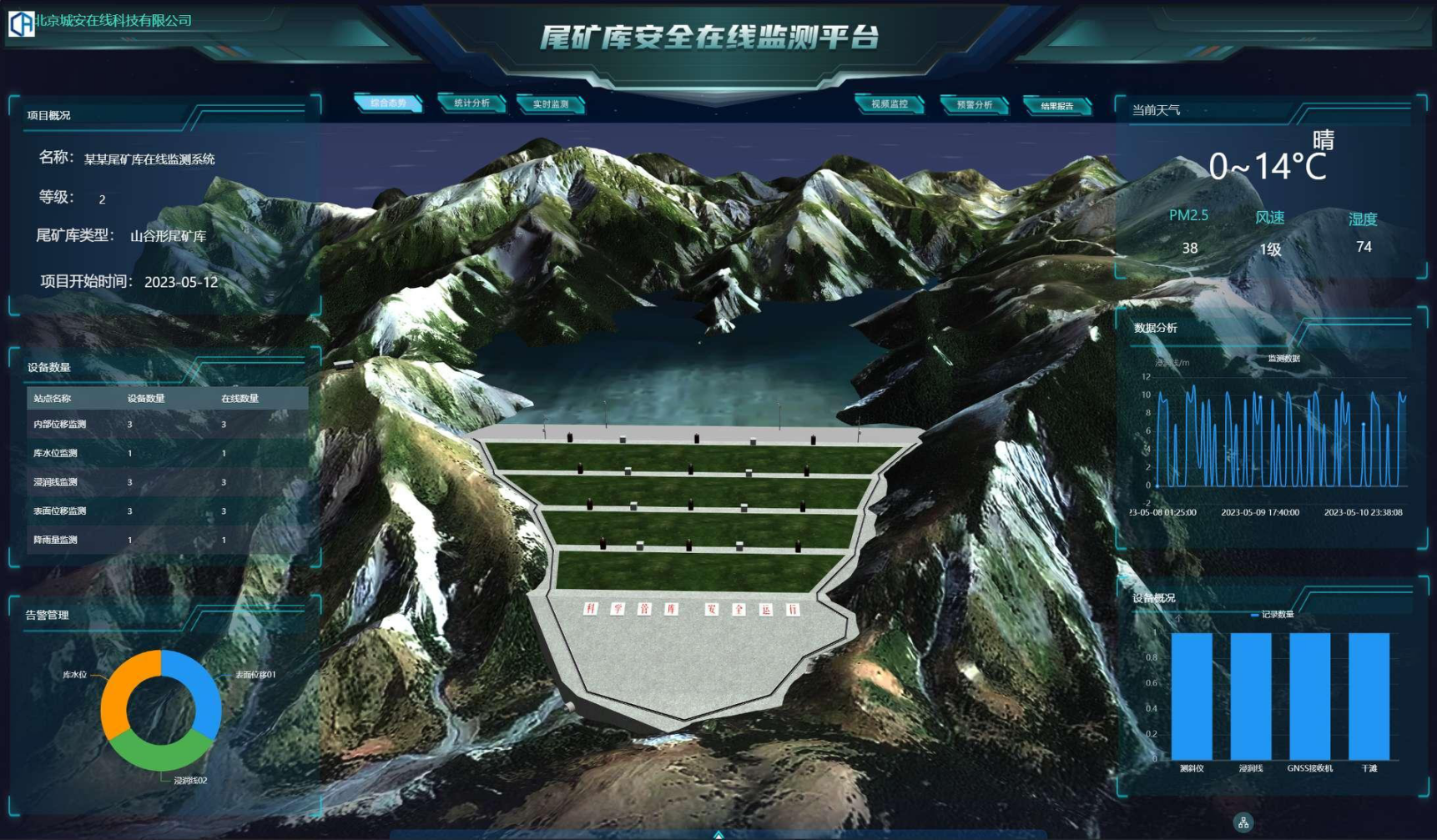

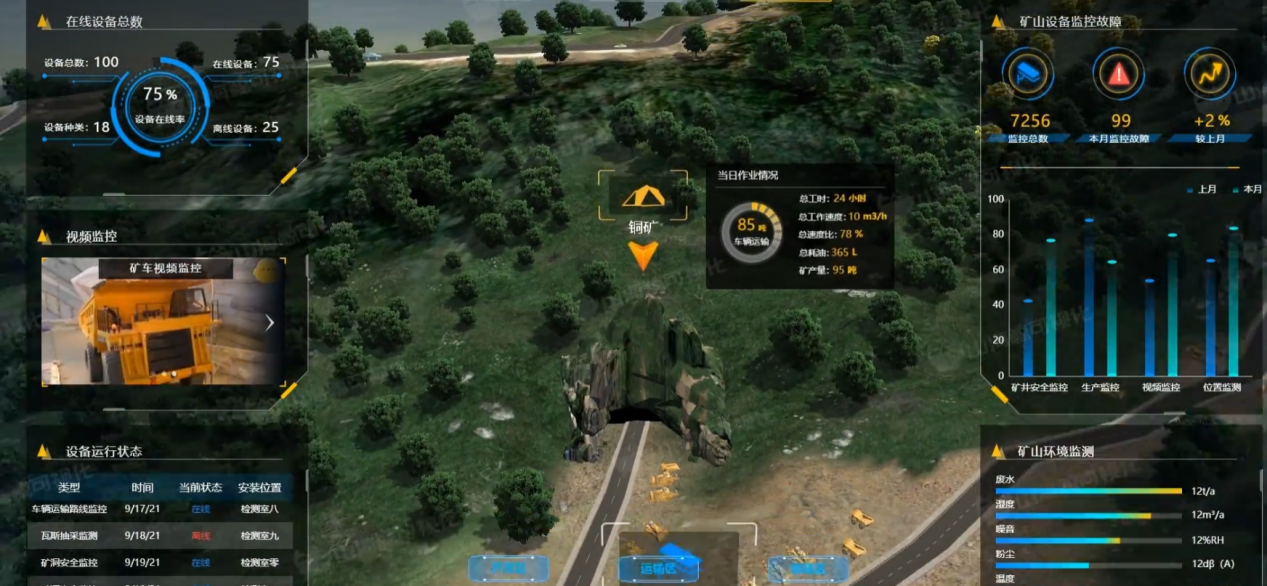

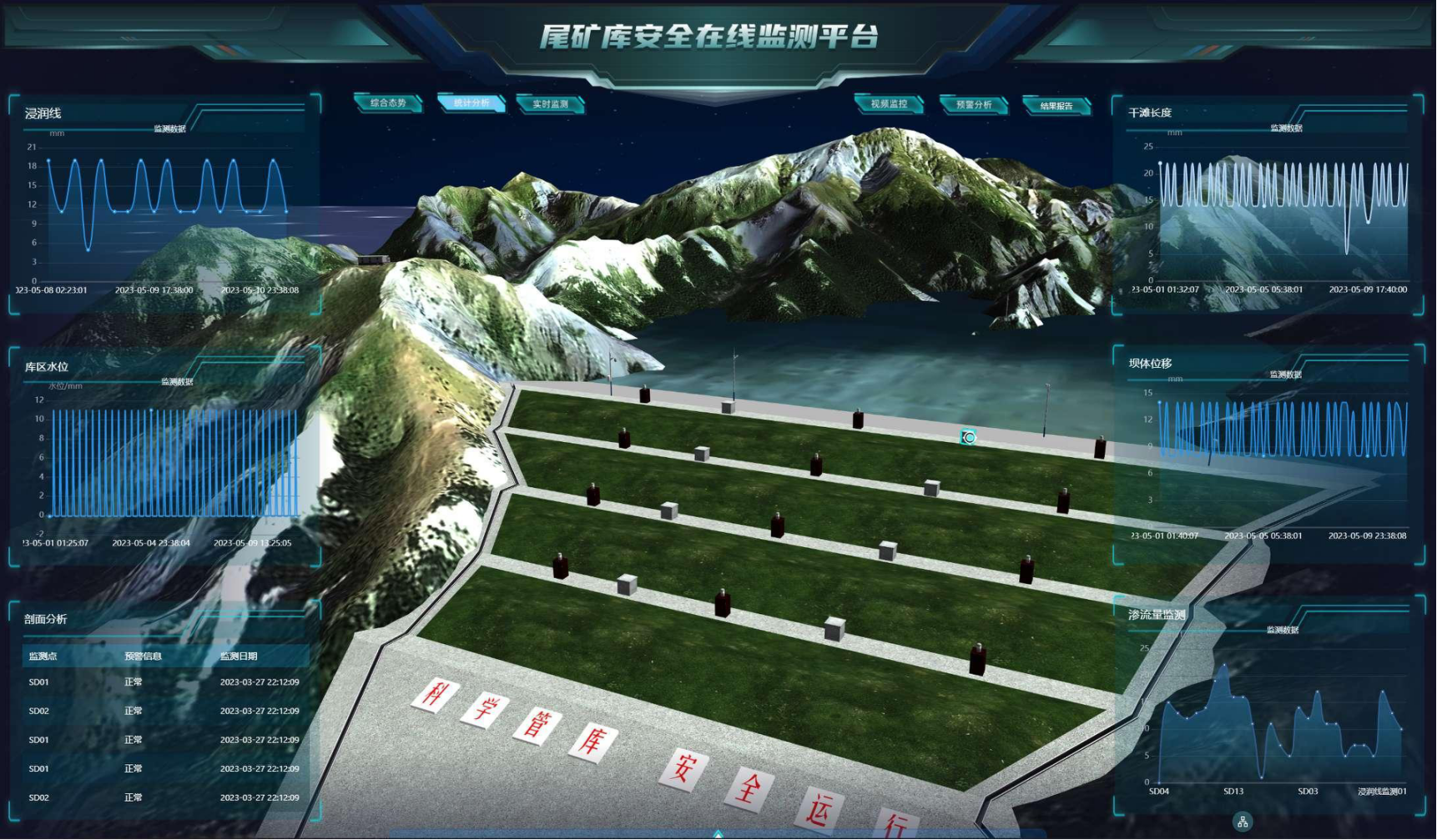

The 3D visualisation module of Chengan Cloud presents project monitoring data on a three-dimensional model of the monitored structure or site.
Deformation, stress, water level and environment data are colour-mapped onto the model so operators can see at a glance where and how the structure is moving.
Key Features

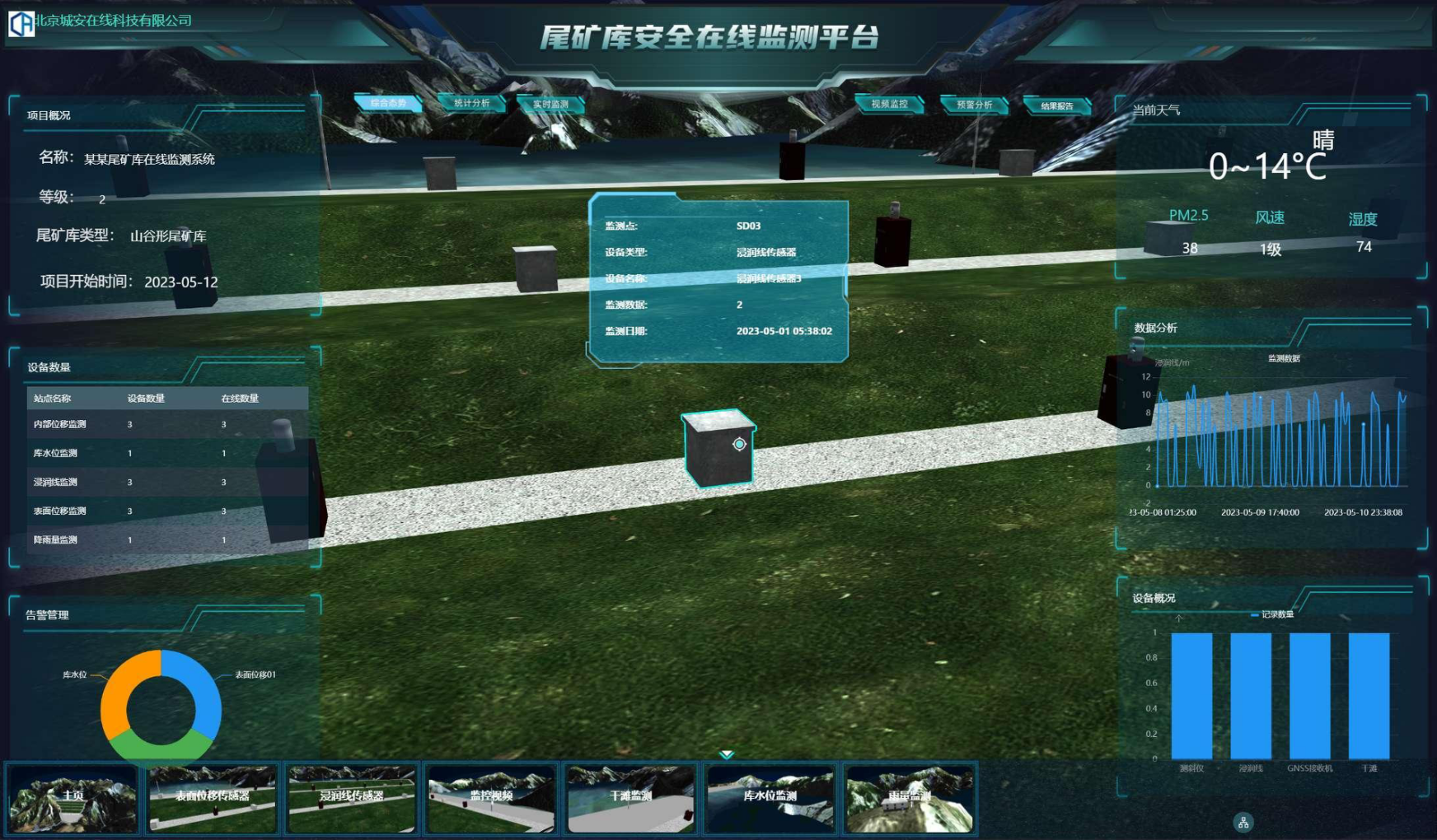

- 3D model of dam, slope, bridge or excavation with sensor points
- Colour-mapped deformation and stress visualisation
- Real-time linkage between model and sensor data
- Historical playback of deformation over time
- Browser-based, no local installation required
